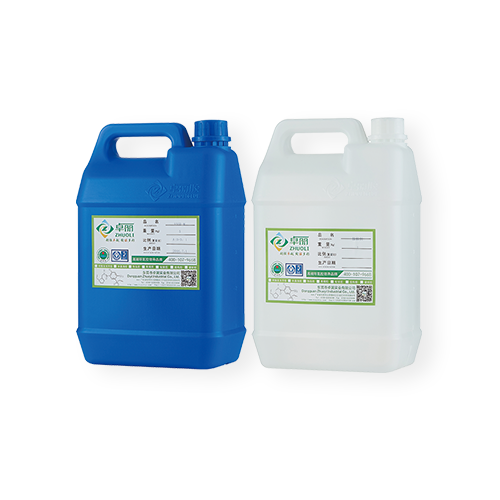

Epoxy resin luminous adhesive

Resin luminous word glue

Product ID：Epoxy resin luminous adhesive
Whatsapp：+8615088155509
Phone: +86 15088155509
Tel: +86 0769－83203199
Email: zhawu@zhuoyishiye.com
Time: 2020-09-19
INQUIRY

Zhuoli Resin Luminous character Glue Parameters

1.Product Models (Representative Products):

Name	Dedicated hard glue for luminous character		Dedicated soft glue for luminous character
Model	835A	835B	836A	836B
Color	Transparent liquid	Transparent liquid	Transparent liquid	Transparent liquid
Matching	3：1		3：1
Specific gravity	1.05±0.2	0.92±0.2	1.05±0.2	0.92±0.2
Viscosity	1350-1450	50-60	1350-1450	50-60
Usable time	25℃×100g×30-40 minutes		25℃×100g×40-50 minutes
Curing time	25℃×6-8 hours or 60℃×1.5 hours		25℃×8-10 hours or 60℃×2 hours

2.Product Features:

This product is environment friendly anti-yellowing epoxy resin glue, which has a low viscosity and good leveling property and antifoam performance and which may be solidified under the normal temperature and medium temperature, whose curing speed is proper.

This product does not absorb the moisture and is not whitened under the low temperature. In addition, the surface of this product is flat and smooth, with the good light permeability, strong adhesive force, corrosion resistance, ageing resistance, cold and thermal shock resistance, oil repellency and dust prevention performance.

3.Features after Solidification:

Name	Dedicated hard glue for luminous character	Dedicated soft glue for luminous character
Hardness (Shore D)	75-83	40-60
Water　absorption (25℃，%/24h)	＜0.1	＜0.1
Compressive strength (Mpa)	≥20	≥3.5
Bending strength (Mpa)	≥1.5	≥3.0
Tensile strength (Mpa)	≥1.3	≥2.7
Elongation (%)	/	≥300
Cure shrinkage rate (%)	＜0.5	＜0.5
